CABINA EXTRACCIÓN TOTAL Serie S1000

CABINA EXTRACCIÓN TOTAL Serie S1000

CABINA EXTRACCIÓN TOTAL Serie S1000

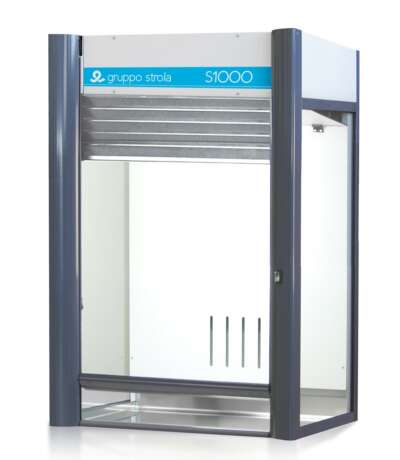

safeaire^® S1000 total extraction bench cupboards are designed to protect operators from the risk of inhaling harmful chemicals.

Fabricated in line with the styling and construction standards of the GS1000 series, they provide a valid alternative in situations where safety requires the extracted air to be expelled externally, and feature:

• 4 different widths: L1000 / 1200 / 1500 / 1800
• Excellent certified containment factor, BS7258, DIN12924, ANSI ASRHAE 110, certified by authorised agency, also with constant speed extraction fan, guaranteed by the top By Pass grille, which enables constant and efficient air make-up with high aerodynamic efficiency, painted in RAL 7015
• Counter-weighted glass sash and side glazing in 3+3 mm layered glass
• 304 AISI stainless steel work surface
• Ducting fitting with plenum equipped with explosion proof panelling
• IP67 sealed lamp outside contaminated zone
• Spill-resistant work surface in 304 AISI stainless steel, standard, optionally available in polypropylene or monolithic stoneware tiles
• Wide range of polypropylene extraction fans for all installation requirements
• CE certified

TECHNICAL SPECIFICATIONS

• Upper body in chrome-plated Fe37 painted with polyester epoxy powder, RAL 7035
• Uprights in extruded aluminium profilewith high aerodynamic efficiency, painted in RAL 7015
• Counter-weighted glass sash and side glazing in 3+3 mm layered glass
• 304 AISI stainless steel work surface

safeaire^® S1000

Ext. dimens. (LxPxH): 1000x750x1500 mm

Int. dimens. (LxPxH): 950x600x1150 mm

Work opening 780×50 / 400 mm – Kg. 100

safeaire^® S1200

Ext. dimens. (LxPxH): 1200x750x1500 mm

Int. dimens. (LxPxH): 1150x640x1150 mm

Work opening 980×50 / 400 mm – Kg. 120

safeaire^® S1500

Ext. dimens. (LxPxH): 1500x750x1500 mm

Int. dimens. (LxPxH): 1450x640x1150 mm

Work opening 1280×50 / 400 mm – Kg. 150

safeaire^® S1800

Ext. dimens. (LxPxH): 1800x750x1500 mm

Int. dimens. (LxPxH): 1750x640x1150 mm

Work opening 1580×50 / 400 mm – Kg. 170

OPTIONAL ACCESSORIES

• Epoxy powder coated cold rolled Fe37 steel base-stands
• Underbench cupboard with doors and shelf incorporated in base-stand
• 4 Wheels with 2 brakes fitted for base-stands for mobility
• Ventilation kit to vent vapours from underbench cupboard to filters
• Anti-vibration stabilizer support for high accuracy weighing
• Failsafe interlock for weighing operations
• AISI 316 stainless steel worktops
• Polypropylene worktops
• Monolithic ceramic stone worktops
• Special stainless steel worktops for pathological anatomy, endoscope disinfection, special waste
• Collection and flushing systems, bespoke worktops for robotic test-rigs and instruments
• The high-precision balance on the inner base stand, which is isolated from any vibrations from the outer base-stand, further stabilized by large silica sand weight and optional marble or granite slab – ensuring weighing to 5-decimal accuracy
• Round dripcups and a variety of rectangular sinks
• Power outlets
• Remote controlled gas and water services
• Processed water filling/draining kits
• Internal UV lamp
• IP67 adjustable spotlight
• Backlit magnifying glass
• Electric safety glass sashes
