Centrifuga refrigerada para tubos falcon

CENTRIFUGA Refrigerada INVESTIGACIÓN 4×15 + 4×50 ml. FALCON 4000 rpm MPW 260R

Pagos en efectivo o tarjetas bancarias

Consulta condiciones de compra

Categorías: Es producto destacado, Centrifugas, Centrifugas, Centrifugas Investigación, Centrifugas, Biología Celular, Biologia molecular, Centrífugas de Laboratorio, Ind. químico farmacéutica, Centrifugas de laboratorio Etiquetas: MPW Centrifuga refrigerada para microtubos centrifuga refrigerada para microtubos Mod.MPW 260 R

Descripción

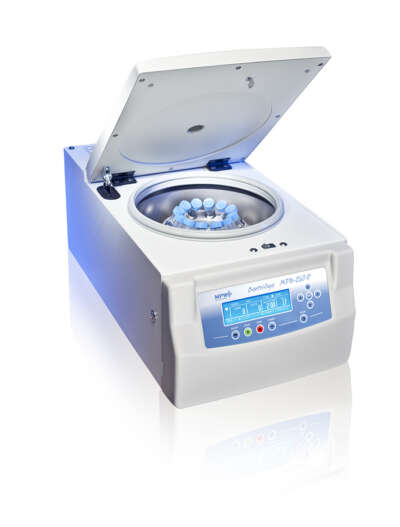

CENTRIFUGA Refrigerada INVESTIGACIÓN

4×15 + 4×50 ml. FALCON MPW 260 R

EQUIPADA CON :

4x100ml

4 000 RPM

2 469xg

Rotor Oscilante

4 Buckets

4 Adaptadores 4×15 ml. tubos FALCON Capacidad Total Rotor: 4 Tubos

4 Adaptadores 4×50 ml. tubos FALCON Capacidad Total Rotor: 4 Tubos

Caracteristicas

Con Refrigeración.
Refrigeración inicial sin/con centrifugación, refrigeración después de la centrifugación, precisa estabilización de temperatura.
Motor de Inducción, libre de mantenimiento
Moderno system de software.
LCD display
99 Programas de trabajo.
10 Perfiles de Aceleración y de Frenado.
Ajuste RPM/RCF
Cálculo efectivo del tiempo de centrifugación.
Ajuste del tiempo de centrifugación.
Modo de Operación continuo.
Modo de Operación „SHORT” corto.
Posibilidad de cambiar los parámetros durante la centrifugación.
Identificación del rotor semi-automática.
Apertura de la tapa automática.
Registro de los parámetros de la centrifugación – PC computer (RS-232)
Impresión de los parámetros de la centrifugación – „KAWKA” printer (opción)
Amplio rango de rotores y equipamiento adicional.

Seguridad

Alarma de desequilibio
Bloqueo de la tapa durante la marcha del rotor
Apertura de emergencia del cierre de la tapa.
Equipo fabricado según las normativas internacionales de seguridad
EN-61010-1 y EN-61010-2-02

Data sheet

	230V 50Hz; 230V 60Hz
	450W
	500ml
	100 ÷ 18000 rpm
	24088 x g
	0 ÷ 99min 59s, or ∞, 1s interval
	365 x 660 x 320mm [HxWxD]
	-20C ÷ +55°C *
	46,5kg

O P C I O N E S – V E R S A T I L I D A D:

ROTORES ANGULARES:

Capacidad	RPM	RFC	ANGULO
4x100ml – complete with 13719 buckets	5 000	3 158	30°
10x50ml – complete with 13276 buckets	4 500	2 830	30°
Round carriers for 15ml Falcon tubes (Ø 17 mm)
Round carriers 30/25 ml (Ø 26×100 mm)
8x50ml	5 000	3 494	30°
Buckets with screw (Ø 30×99 mm) for 50 ml Falcon tubes and round carriers
Buckets 50 ml with caps
Buckets for 50 ml Falcon tubes and round carriers
6x50ml – complete with 13276 buckets	6 000	4 427	30°
Round carriers for 15ml Falcon tubes
Round carriers 30/25 ml (Ø 26×100 mm) for buckets 13249-13250, 13266-13267, 13275-13276
4×25/30ml – complete with 13329 buckets	6 000	4 829	45°
12×25/30ml – complete with 13329 buckets	4 500	2 716	30°
Round carriers for tubes 7 ml (Ø 13×100 mm)
Round carriers for tubes 15/10 ml (Ø 17×120 mm)
12×1,5/2ml	18 000	24 088	45°
24×1,5/2ml	15 100	21 158	45°
36×1,5/2ml	14 000	18 187	45°
Round carriers 0,5 ml (Ø 8,0 mm)
Round carriers 0,4 ml (Ø 5,7 mm)
Round carriers 0,2 ml (Ø 6,2 mm)
24×1,5/2ml	14 000	18 187	45°
18x2ml filter	14 000	18 187	45°
4x8x0,2ml PCR	14 000	15 339	45°
12x5ml	14 000	19 064	30°
10x10ml	14 000	15 558	30°
8×10/15ml – complete with 13080 or 13081 buckets	6 000	4 226	30°
10x15ml – complete with 13080 or 13081 buckets	6 000	4 226	30°
12×10/15ml – complete with 13080 or 13081 buckets	5 500	4 058	30°
24×10/15ml – complete with 13080 or 13081 buckets	5 000	3 354	30°
Round carriers 7/5 ml (Ø 13,3 mm)

Rotores Oscilantes

Capacidad	RPM	RFC	ANGULO
4x100ml	4 000	2 469	–
Hangers 2 x 15 ml Falcon with buckets 13080
Buckets for Arthrex ACP system with screw
Buckets for Arthrex ACP system with caps 17265
Buckets 50 ml for Falcon tubes (Ø 30×100 mm) and carriers 14089, 14248
Buckets 50 ml with screw for Falcon tubes (Ø 30×100 mm) and carriers 14248
Buckets 50 ml with caps 17151 for Falcon tubes (Ø 30×100 mm) and carriers 14248
Buckets 100 ml (Ø 45×89 mm) for round carriers 14181, 14186-14192, 14024
Buckets 100 ml (Ø 45×96 mm) with screw for round carriers 14024, 14181, 14186-14192, 14196
Buckets 100 ml (Ø 45×96 mm) with caps 17185 for round carriers 14024, 14181, 14186-14192, 14196
Rubber pads under tubes 100/50/30/25 ml
Rubber pads under glass tube 100 ml with stopper
Round carriers 15 ml Falcon (Ø 17×120 mm)
Round carriers 5 x 2/7 ml (Ø 12,5×100 mm)
Round carriers 4 x 7 ml (Ø 13,1×100 mm)
Round carriers 4 x 15/10 ml (Ø 16,5×112 mm)
Round carriers 50 ml (Ø 30×120 mm) Falcon with rubber pads 14188
Round carriers 30/25 ml (Ø 25,5 mm) with rubber pads 14188
Round carriers for tube 50 ml (Ø 35 x100 mm) with rubber pads 14188
8×10/15ml	4 000	2 504	–
4x70ml	4 000	2 308	–
Buckets 12 x 5 ml for Monovette tubes (Ø 13×81 mm)
Buckets 70 ml ( Ø 57×66 mm) for round carriers 14169, 14235, 14238 – 14240, 14242
Round carriers 8 x 4 ml (Ø 13×81 mm)
Round carriers 12 x 5 ml (Ø 12×75 mm)
Round carriers 7 x 10 ml (Ø 17×75 mm)
Round carriers 7 x 5 ml (Ø 13,5×75 mm)
Round carriers 9 x 2/1,5 ml (Ø 11×38,5 mm)
Round carriers 12 x 1,2 ml S-Monovette (Ø 56×66 mm)

Rotores Especiales:

Capacidad	RPM	RFC	ANGULO
24 capillary 75mm	13 000	16 816	–
Flat hematocrite reader
Round – hematocrite reader
6 casettes 20×0,4/0,2ml; 10×2/1,5ml	14 000	15 338	–
2×1 MTP (standard)	3 000	916	–
MPW Edytor – PC software, USB/RS-232 converter, USB cable (1,8m), RS-232 cable (1,8m) – for recording of working parameters through RS 232 port on PC computer
RS-232 cable (1,8m)
Thermal printer KAWKA

The MPW 260 model is a desktop laboratory centrifuge. It find application in medical, biochemical, veterinary, industrial as well as other laboratories. The construction of the centrifuge is based on the broad experience of the MPW Med. instruments company and its many years of cooperation with laboratories and medical institutions.

Data sheet

	230V 50/60Hz;115V 50/60Hz
	200W
	500ml
	100 ÷ 18000 rpm
	24088 x g
	0 ÷ 99min 59s, or ∞, 1s interval
	365 x 495 x 320mm [HxWxD]
	28/29,5kg

Features

with ventilation
effective ventilation system
maintenance-free induction motor
modern software system
LCD display
99 operating programs
10 acceleration/deceleration curves
RPM/RCF adjustment
effective centrifuging time calculation
centrifuging time adjustment
continuous operation mode
„SHORT” operation mode
possibility of changing parameters during centrifuging
semi-automatic rotor identification
automatic lid opening
centrifuging parameters recording – PC computer (RS-232)
centrifuging parameters printing – „KAWKA” printer (option)
broad range of rotors and additional equipment

Safety

unbalance warning
lid locking during rotor run
emergency lid lock release
Product conforming with the EN-61010-1 and EN-61010-2-020 international safety norms

Angle rotors

Capacity	RPM	RFC	ANGLE
4x100ml – complete with 13719 buckets	5 000	3 158	30°
10x50ml – complete with 13276 buckets	4 500	2 830	30°
Round carriers for 15ml Falcon tubes (Ø 17 mm)
Round carriers 30/25 ml (Ø 26×100 mm)
8x50ml	5 000	3 494	30°
Buckets with screw (Ø 30×99 mm) for 50 ml Falcon tubes and round carriers
Buckets 50 ml with caps
Buckets for 50 ml Falcon tubes and round carriers
6x50ml – complete with 13276 buckets	6 000	4 427	30°
Round carriers for 15ml Falcon tubes
Round carriers 30/25 ml (Ø 26×100 mm) for buckets 13249-13250, 13266-13267, 13275-13276
4×25/30ml – complete with 13329 buckets	6 000	4 829	45°
12×25/30ml – complete with 13329 buckets	4 500	2 716	30°
Round carriers for tubes 7 ml (Ø 13×100 mm)
Round carriers for tubes 15/10 ml (Ø 17×120 mm)
12×1,5/2ml	18 000	24 088	45°
24×1,5/2ml	15 100	21 158	45°
36×1,5/2ml	14 000	18 187	45°
Round carriers 0,5 ml (Ø 8,0 mm)
Round carriers 0,4 ml (Ø 5,7 mm)
Round carriers 0,2 ml (Ø 6,2 mm)
24×1,5/2ml	14 000	18 187	45°
18x2ml filter	14 000	18 187	45°
4x8x0,2ml PCR	14 000	15 339	45°
12x5ml	14 000	19 064	30°
10x10ml	14 000	15 558	30°
8×10/15ml – complete with 13080 or 13081 buckets	6 000	4 226	30°
10x15ml – complete with 13080 or 13081 buckets	6 000	4 226	30°
12×10/15ml – complete with 13080 or 13081 buckets	5 500	4 058	30°
24×10/15ml – complete with 13080 or 13081 buckets	5 000	3 354	30°
Round carriers 7/5 ml (Ø 13,3 mm)

Swing-out rotors

Capacity	RPM	RFC	ANGLE
4x100ml	4 000	2 469	–
Hangers 2 x 15 ml Falcon with buckets 13080
Buckets for Arthrex ACP system with screw
Buckets for Arthrex ACP system with caps 17265
Buckets 50 ml for Falcon tubes (Ø 30×100 mm) and carriers 14089, 14248
Buckets 50 ml with screw for Falcon tubes (Ø 30×100 mm) and carriers 14248
Buckets 50 ml with caps 17151 for Falcon tubes (Ø 30×100 mm) and carriers 14248
Buckets 100 ml (Ø 45×89 mm) for round carriers 14181, 14186-14192, 14024
Buckets 100 ml (Ø 45×96 mm) with screw for round carriers 14024, 14181, 14186-14192, 14196
Buckets 100 ml (Ø 45×96 mm) with caps 17185 for round carriers 14024, 14181, 14186-14192, 14196
Rubber pads under tubes 100/50/30/25 ml
Rubber pads under glass tube 100 ml with stopper
Round carriers 15 ml Falcon (Ø 17×120 mm)
Round carriers 5 x 2/7 ml (Ø 12,5×100 mm)
Round carriers 4 x 7 ml (Ø 13,1×100 mm)
Round carriers 4 x 15/10 ml (Ø 16,5×112 mm)
Round carriers 50 ml (Ø 30×120 mm) Falcon with rubber pads 14188
Round carriers 30/25 ml (Ø 25,5 mm) with rubber pads 14188
Round carriers for tube 50 ml (Ø 35 x100 mm) with rubber pads 14188
8×10/15ml	4 000	2 504	–
4x70ml	4 000	2 308	–
Buckets 12 x 5 ml for Monovette tubes (Ø 13×81 mm)
Buckets 70 ml ( Ø 57×66 mm) for round carriers 14169, 14235, 14238 – 14240, 14242
Round carriers 8 x 4 ml (Ø 13×81 mm)
Round carriers 12 x 5 ml (Ø 12×75 mm)
Round carriers 7 x 10 ml (Ø 17×75 mm)
Round carriers 7 x 5 ml (Ø 13,5×75 mm)
Round carriers 9 x 2/1,5 ml (Ø 11×38,5 mm)
Round carriers 12 x 1,2 ml S-Monovette (Ø 56×66 mm)

Special rotors

Capacity	RPM	RFC	ANGLE
24 capillary 75mm	13 000	16 816	–
Flat hematocrite reader
Round – hematocrite reader
6 casettes 20×0,4/0,2ml; 10×2/1,5ml	14 000	15 338	–
2×1 MTP (standard)	3 000	916	–
MPW Edytor – PC software, USB/RS-232 converter, USB cable (1,8m), RS-232 cable (1,8m) – for recording of working parameters through RS 232 port on PC computer
RS-232 cable (1,8m)
Thermal printer KAWKA
