ARMARIO FILTRACIÓN QUIMICA Serie AP (Medida 1000-1200 mm)

ARMARIO FILTRACIÓN QUIMICA Serie AP

ARMARIO FILTRACIÓN QUIMICA Serie AP

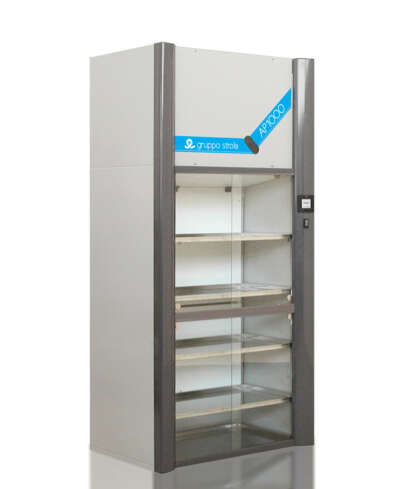

safeaire ^® Serie AP molecular filtration cabinet for safe storage of anatomical specimens fixed in formalin, for protecting anatomical pathology department staff.

The filtered air extracted by the GS1000 AP / GS1200 AP cabinet can be recycled into the interior without affecting the operation of the centralised air handlers, or can be channelled to the outside. The cabinet features:

• No extraction ducting, equipped as standard with extraction after filtration
• Width 1,000 and 1,200 mm
• CE certified, also satisfies the provisions of Italian Decree Law 626/94 (elimination at source of chemical contaminants and dust) and by British Law COSHH- 1988 (The Control of Substances Hazardous to Health Regulations)
• High efficiency of the active charcoal filtration system, impregnated specifically for aldehydes, certified BS7989 and/or HEPA filter – 99% efficiency on 0.3µ
• Semi-absolute prefiltration with 95% efficiency on 0.5 µ
• Extraction/filtration system with dynamic seal ensuring all air passes through the filter
• High containment factor due to the front opening in two overlapping sections, each composed of two horizontally sliding sashes in tempered glass.
• This division of the opening provides better containment, energy savings and longer filter life
• Two step automatic variation of the extraction flow rate (two presets) depending on the opening of one sash, to maintain constant containment
• Low air face flow alarm and operating hour counter

TECHNICAL SPECIFICATIONS

• Fe37 construction, painted in RAL 7035
• Extruded aluminium profile uprights with high aerodynamic efficiency, painted in RAL 7015
• 5 internal collection tray shelves in 304 AISI stainless steel, can be positioned at variable heights, of which one is fixed on the floor of the cupboard
• Sliding front panels in tempered glass
• CEI 64.2 electrical system, protection rating IP44 and 3.5 A thermal cutout
• Frequency controlled extraction fan: GS1000 / GS1200: 220 V – 485 W – IP 44
• Air speed 0.30 – 0.60 m/s
• Noise level
• Extraction manifold diam. 250 mm
• Max. air flow rate 450 m³/h

safeaire^® GS1000 AP

Ext. dim. (LxPxH): 1000x755x2150 mm

Int. dim. (LxPxH): 980x602x1450 mm

Work opening (LxH): 400×714 mm – Kg. 200

safeaire^® GS1200 AP

Ext. dim. (LxPxH): 1200x755x2150 mm

Int. dim. (LxPxH): 1180x602x1450 mm

Work opening (LxH): 500×714 mm – Kg. 240

ACCESSORIES

Sealed housing with extraction fan programmer / timer
